AVX-C2214B4 2K IR Indoor/Outdoor Mini IP Bullet Camera AVX-C2214B4 2K IR Indoor/Outdoor Mini IP Bullet Camera AVX-C2214B4 2K IR Indoor/Outdoor Mini IP Bullet Camera AVX-C2214B4 2K IR Indoor/Outdoor Mini IP Bullet Camera

AVX-C2214B4 2K IR Indoor/Outdoor Mini IP Bullet Camera

This product is not yet available.

SKU:
AVX-C2214B4
Resolution:
2K/4MP (2560x1440)
Number of Video Streams:
2 (Primary high resolution stream for single camera view, secondary low resolution stream for multiple camera view)
Frames Per Second:
30FPS @ 2560x1440
Wide Dynamic Range:
True WDR, 120db
Focal Length:
2.8 mm Fixed
Image Sensor:
1/2.9”, 4MP, Progressive Scan, CMOS
Field of View (Hor):
101.5°
Lens Adjustment:
3-Axis Ball Joint
Iris Control:
F2.0 Fixed
Backlight Compensation:
Auto / Manual
Auto Gain Control:
Yes
Day / Night:
Auto/Day/Night
Max IR Range:
Up to 98 feet (30m) from camera
Optimal IR Range:
Up to 60 feet (18m) from camera
Effective Range @ 60 / 40 / 20 PPF <sup>1</sup>:
22' / 40' / 80'

Auto White Balance Range:
2700K ~ 8000K
Privacy Masking:
Yes
Compression:
H.264 Enhanced Codec
MicroSD Backup Slot:
Yes, up to 512GB capacity
IP Rating:
IP67
NDAA Compliant:
Yes
Tamper/Vandal Resistant:
Graphene and Metal Construction
Power Consumption:
Max 5.5W
Operating Temperature:
-22° ~ 140°F (-30° ~ 60°C)
Cold Start Temperature:
-22°F
Dimensions:
6.6” x 2.7” x 2.4” (168 x 68mm x 60mm)
Weight:
.86lbs (0.39kg)
Item Includes:
100' Cat5e camera cable, Mounting hardware, Waterproof Camera Connector
Optional Mounts:
Junction Box
Notes: <sup>1</sup>:
For more information about effective range and PPF, see our DIY Guide How Far Can I See with My Cameras?
Current stock: 0

Cart Subtotal: $0.00

View Cart Checkout


The Professional Difference

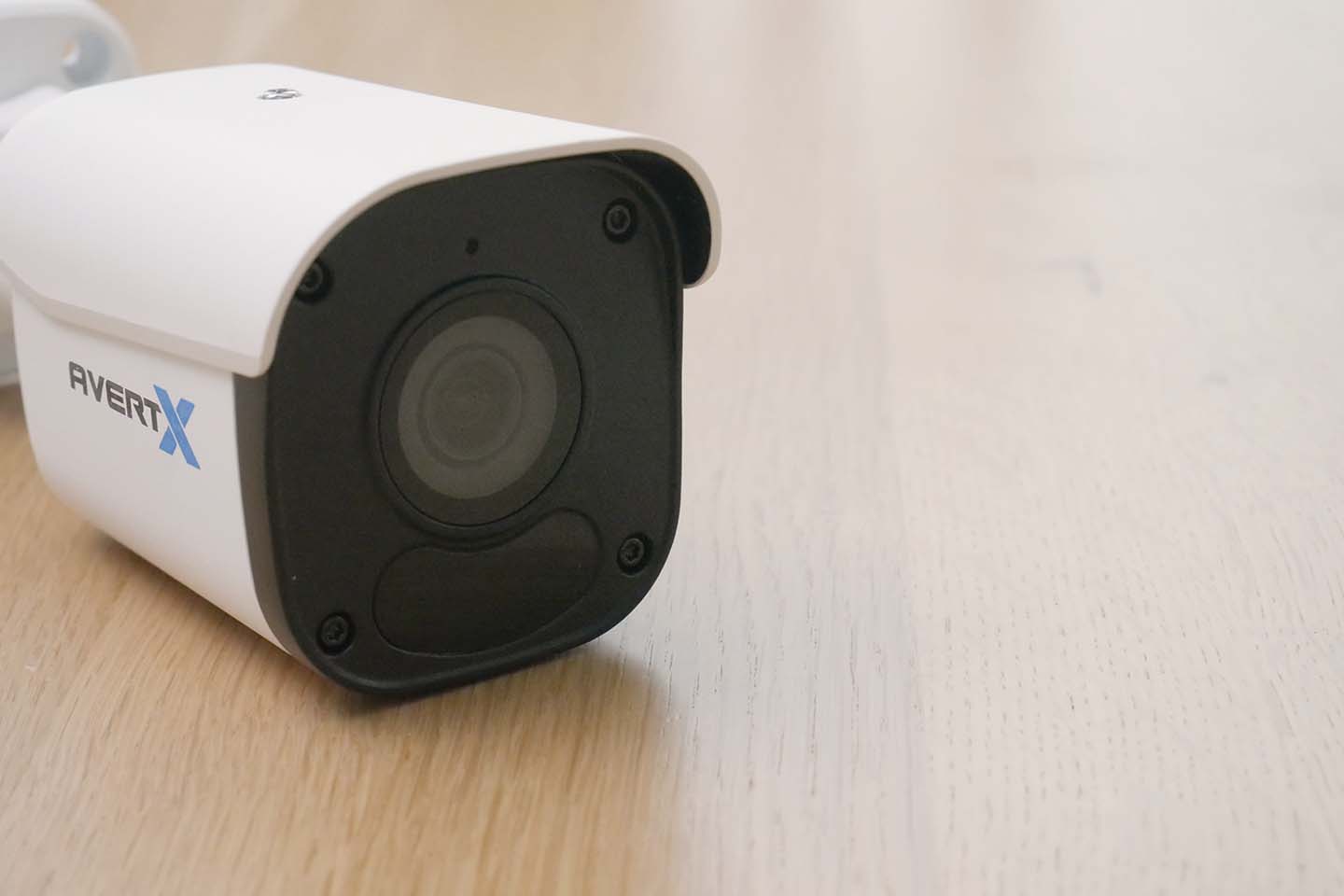

Introducing the AvertX AVX-C2214B4 4MP Mini Bullet Camera—premium security at a great value. Enjoy exceptional picture quality day and night with the latest image sensor and processor, plus True WDR for balanced clarity. It’s built to last with an IP-67 waterproof rating, features smart compression for efficient storage, and is NDAA compliant for peace of mind. With a built-in microphone and internal microSD recording, this camera delivers top-tier performance at a low price—making it the smart choice for reliable, affordable surveillance.

2K (4MP)
HD+ Resolution

2K Resolution

Enlarge your image and see critical details at greater distances

True
WDR

True WDR

Improved video in uneven light caused by backlight or shadows

microSD
Backup

Records directly to an internal microSD card for redundancy

Internal
Microphone

Listen in to a scene with internal microphone

NDAA
Compliant

Approved for use in federal projects

IP-67 Rated
Weatherproof

Reliable performance indoors or outdoors in all weather

Smart
Compression

Store up to 50% more video than before while retaining quality

Infrared
Night Vision

Adaptive IR LED technology for maximum visibility at night

The Power of Megapixels

Elevate your security with an AvertX 4MP security camera—offering crystal-clear images that outshine most WiFi cameras on the market. With 4MP high-definition resolution, you'll capture every detail with incredible clarity, ensuring you never miss a moment. Enjoy the peace of mind that comes from superior surveillance, all at a remarkably affordable price. Experience exceptional performance and value, making AvertX the smart choice for anyone looking to upgrade their security without breaking the bank.

AVX-C2214B4 Pain Free Installation

Pain Free Installation

AvertX has designed its system with integral features to simplify installation. An integrated PoE switch on the recorder means you only need to run a single cable your cameras. At startup, the ProConnect NVR recognizes your cameras and starts recording. The key to a successful installation is planning. Please visit our DIY Corner for resources to choose the appropriate system for your home or business and tips and tricks for installing and getting the most out of your system. If you have any questions about your installation, call the AvertX PRO Team!

Camera includes 100’ CAT5e Ethernet cable for camera connections
HD820 IR

Superior Nighttime Performance

For scenes in total darkness, the AVX-C2214B4 bullet camera uses the latest high-intensity IR LED technologies for maximum visibility. Adaptive IR technology adjusts illumination levels as an object approaches to keep other objects close to the camera from being washed out. If you prefer a color image, the AVX-C2214B4 can capture color footage with minimal security lighting or using the integrated spotlight.

*IR range and image quality can be affected by surfaces that absorb or reflect the IR light differently when in total darkness. Camera location or position may need to be adjusted to optimize the images. Some ambient lighting provides the best results for night surveillance.

Redundant Backup In Camera

The AVX-C2214B4 bullet camera features a microSD card slot as an added layer of redundancy and backup. Once you add a microSD card, the camera will record directly to the internal storage on the card, making sure you always have video. If your recorder is stolen or fails, you can pull video directly from the camera’s microSD card and never miss an important event!

* microSD card not included.

Smart Compression

Advanced Smart Compression

Maximize your bandwidth and NVR's storage with our H.264 Enhanced Codec. Using the H.264 Smart Codec, high quality video uses less bits of data. Less bits of data means you can store up to 50% more video than before on your NVR and use less bandwidth when viewing your video remotely. It's like being able to fit more of Grandma's cookies in your old cookie jar!

Extreme Cold

Extreme Cold

The AVX-C2214B4 Mini Bullet Camera will operate in extreme cold temperatures down to -22°. The cold can cause other cameras to stop recording but you can expect reliable operation through the winter or in other extreme environments such as cold storage freezers and refrigerators

True Wide Dynamic Range

True WDR (wide dynamic range) compensates for uneven light conditions caused by shadows, sun glare, backlight, and inconsistent lighting. AvertX cameras with True WDR use multiple exposure technology that includes hardware and digital image processing. The result is superior video quality. See the True WDR video below for more information!

AvertX Weather Resistant Cameras

Privacy Masks

Create a privacy mask on your AvertX camera to block recording and viewing of a designated area within the field of view of the camera. This feature allows you to block sensitive areas to protect privacy while still recording what is happening around it. A privacy mask gives you greater flexibility to place your cameras where they capture what you want, while maintaining the privacy or confidentiality of assets, secure entry devices, documents, windows or areas where privacy is important.


All Weather Construction

AvertX cameras feature an IP67 rated housing construction to withstand tough weather conditions for outdoor installation. To provide even greater protection from the weather, this camera is equipped with an IP66 rated threaded connector and a matching IP66 connector on the included 100 foot Ethernet camera cable. This makes a water tight outdoor connection even when a protected connection is not possible.

Additional Info

Specifications

SKU:
AVX-C2214B4
Resolution:
2K/4MP (2560x1440)
Number of Video Streams:
2 (Primary high resolution stream for single camera view, secondary low resolution stream for multiple camera view)
Frames Per Second:
30FPS @ 2560x1440
Wide Dynamic Range:
True WDR, 120db
Focal Length:
2.8 mm Fixed
Image Sensor:
1/2.9”, 4MP, Progressive Scan, CMOS
Field of View (Hor):
101.5°
Lens Adjustment:
3-Axis Ball Joint
Iris Control:
F2.0 Fixed
Backlight Compensation:
Auto / Manual
Auto Gain Control:
Yes
Day / Night:
Auto/Day/Night
Max IR Range:
Up to 98 feet (30m) from camera
Optimal IR Range:
Up to 60 feet (18m) from camera
Effective Range @ 60 / 40 / 20 PPF <sup>1</sup>:
22' / 40' / 80'

Auto White Balance Range:
2700K ~ 8000K
Privacy Masking:
Yes
Compression:
H.264 Enhanced Codec
MicroSD Backup Slot:
Yes, up to 512GB capacity
IP Rating:
IP67
NDAA Compliant:
Yes
Tamper/Vandal Resistant:
Graphene and Metal Construction
Power Consumption:
Max 5.5W
Operating Temperature:
-22° ~ 140°F (-30° ~ 60°C)
Cold Start Temperature:
-22°F
Dimensions:
6.6” x 2.7” x 2.4” (168 x 68mm x 60mm)
Weight:
.86lbs (0.39kg)
Item Includes:
100' Cat5e camera cable, Mounting hardware, Waterproof Camera Connector
Optional Mounts:
Junction Box
Notes: <sup>1</sup>:
For more information about effective range and PPF, see our DIY Guide How Far Can I See with My Cameras?
Reviews

Documents and Downloads

 Quick Start Guide     User Manual    Product SpecificationsDownload Mounting TemplateDownload Mounting Template

Compatibility

Note:

This camera is intended for Plug-n-Play use with AvertX’s current generation of ProConnect brand recorders. Use with other manufacturer’s recorders, and prior generation AvertX recorders, is not recommended without first contacting AvertX Pro Team Support. Additional advanced configuration and limitations such as continuous recording only may apply. See FAQs for steps.
