HD810

HD810 4MP Autofocus Night Vision Indoor/Outdoor IP Dome Camera

Current stock: 0

Free Shipping on orders over $1000 45-day Free Returns Free Pro Team Support For Life

The Professional Difference

AvertX systems use professional grade hardware that is designed for any location where video surveillance would provide peace of mind, including your home, business, school, or church. AvertX cameras and recorders are put through the same stringent tests for durability and reliability as professional equipment to ensure peak performance and extended reliability. AvertX products are supported by our US-based PRO Team and backed by a standard two-year warranty.

Camera includes 100’ CAT5e Ethernet cable for camera connections


What is the difference between the HD810 and HD820 Autofocus Dome Cameras?


Megapixel Cameras

Higher resolution gives you the ability to enlarge an image and see critical details at a greater distance than before. The image above depicts the video image difference between various video streaming technologies. Analog systems typically provide top resolution of 960x480 pixels, significantly smaller than the image provided by HD Plus megapixel cameras. 1080p high definition is 1920x1080 pixels, similar to a 1080p HD television. AvertX 4MP cameras capture video at 2560x1440 pixels. That’s more than 75% more pixels than 1080p!


Remote Controlled Autofocus 3x Optical Zoom

The AvertX HD810 dome camera provides control over the viewing area. A fixed lens camera’s view is limited by how close or far it is from the targeted area. The HD810 with its 3x optical zoom gives you more choices for camera placement and to zoom in on what’s important to you. Once you have the view you want, autofocus gives you the sharpest picture possible. Zoom and focus is controlled by the NVR software or mobile app. No more climbing a ladder to adjust the camera!

Spectrum Vision WDR

Spectrum Vision WDR (wide dynamic range) compensates for uneven light conditions caused by shadows, obstructions, back light and inconsistent lighting.  Cameras with Digital WDR may show some improvement for these conditions but do not achieve optimum results.  Spectrum Vision WDR from AvertX uses double exposure technology that includes both optical and digital image processing.  The result is superior video quality compared to Digital WDR.

HD810 IR

Night Vision

Capture images covertly at night. AvertX Night Vision uses infrared light (IR) that allows your surveillance system to see intruders in the dark. AvertX Cameras use the latest high intensity IR LED technologies for maximum coverage. The image shown is an actual capture from a HD810 dome camera in total darkness at a distance of approximately 30 feet from the camera.

*IR range and image quality can be affected by surfaces that absorb or reflect the IR light differently when in total darkness. Camera location or position may need to be adjusted to optimize the images. Some ambient lighting provides the best results for night surveillance.

The Professional Difference

The Professional Difference -- AvertX systems use professional grade hardware that is designed for any location where video surveillance would provide peace of mind, including your home, business, school, or church. AvertX cameras and recorders are put through the same stringent tests for durability and reliability as professional equipment to ensure peak performance and extended reliability. AvertX products are supported by our US-based PRO Team and backed by a standard two-year warranty.


Pain Free Installation

AvertX has designed its system with integral features to simplify installation. Power and video are transmitted over a single cable up to 300 feet without requiring an external power source. AvertX cameras feature an IP66 rated waterproof housing construction to withstand tough weather conditions for outdoor installation. At startup, cameras are initialized, video is recorded and motion detection is active. The key to a successful installation is planning. Before you make your purchase of a system, please read the PDF document titled “Things to Consider Before Purchasing a Video Surveillance System.” If you have any questions before or after your purchase, call the AvertX PRO Team.

Camera includes 100’ CAT5e Ethernet cable for camera connections

Black Paintable Snap-on Cover

Instantly change the color of your AvertX dome camera with the included paintable snap-on cover. The black cover will match dark surfaces. If you would like a different color, paint the cover and snap it on. It’s that simple!

*Available with the HD80IRM and HD310

Your Video Safe And Secure

As an added layer of backup, AvertX cameras allow you to record directly to an internal microSD card. If your recorder is stolen, you can pull video directly from the camera’s microSD card.

* microSD card not included. See camera specifications for maximum storage card capacity and storage drive information.
AvertX Weather Resistant Cameras

Privacy Masks

Create a privacy mask on your AvertX camera to block recording and viewing of a designated area within the field of view of the camera. This feature allows you to block sensitive areas to protect privacy while still recording what is happening around it. A privacy mask gives you greater flexibility to place your cameras where they capture what you want, while maintaining the privacy or confidentially of assets, secure entry devices, documents, license plates, windows or areas where privacy is important.


ONVIF Compliant

AvertX HDIP cameras are ONVIF Profile S compliant and compatible with other ONVIF compliant recorders. Plug and Play automatic configuration is only available with AvertX HDIP recorders.

Specifications

SKU:
HD810IR
Resolution:
4MP (2560x1440)
Number of Video Streams:
2 (Primary high resolution stream for single camera view, secondary low resolution stream for multiple camera view)
Frames Per Second:
15 fps @ 4MP / True WDR; 30 fps @ 4MP / Digital WDR
Wide Dynamic Range:
Spectrum Vision True WDR
Focal Length:
3 ~ 9 mm Autofocus Lens
Field of View:
33 ˚ ~ 109˚
Lens Adjustment:
2-Axis
Iris Control:
Auto Iris F1.7
Backlight Compensation:
Yes
Auto Gain Control:
Yes
Minimum Illumination @ 30IRE:
B/W Mode: 0.05 Lux Color Mode: 0.5 Lux
Day / Night:
True Day / Night
Max IR Range:
Up to 100 feet (30m) from camera
Optimal IR Range:
Up to 60 feet (18m) from camera
Effective Range @ 60 / 40 / 20 PPF 1:
@ 3mm: 25' / 38' / 75'; @ 6mm: 50' / 75' / 150'; @ 9mm: 75' / 113' / 225'

Auto White Balance Range:
2700K ~ 8000K
Privacy Masking:
Yes
Compression:
H.264 / MJPEG
MicroSD Backup Slot:
Up to 128GB capacity (card not included)
IP Rating:
IP66
Tamper/Vandal Resistant:
Hardened Aluminum Dome
Heater:
No
ONVIF Compliance:
Profile S
Input Voltage:
PoE Only: IEEE 802.3af Power over Ethernet 48vDC
Power Consumption:
9.6 W (Max)
Operating Temperature:
-13° ~ 122°F (-25° ~ 50°C)
Cold Start Temperature:
18°F (-8°C)
Dimensions:
Ø 4.6” x 3.6”
(Ø 117 x 9.5 mm)
Weight:
0.8 lbs (370 g)
Item Includes:
100' Cat5e camera cable, Mounting hardware

Optional Mounts:

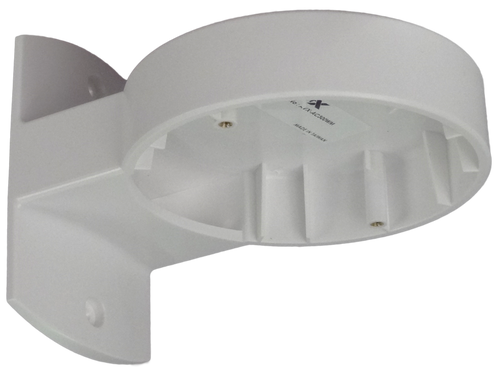

Wall Mount, Mounting Plate
Mounting Holes Diameter (On Center)::
Ø 3 11/16" (93mm)
Notes: 1:
For more information about effective range and PPF, see our DIY Guide How Far Can I See with My Cameras?
Warranty
ONVIF Compliant

ONVIF is an open industry association that provides and promotes standardized interfaces for effective interoperability of IP-based physical security products. AvertX HDIP cameras are ONVIF Profile S compliant and compatible with other ONVIF compliant recorders. Plug and Play automatic configuration is only available with AvertX HDIP recorders.
